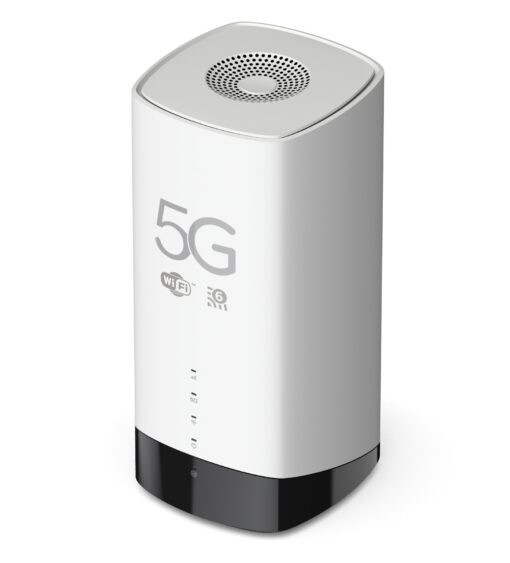

مودم سیمکارتی AURORA مدل C082 ا AURORA C082 4G/5G/TDLTE

مشتری محترم، این کالا استوک تمیز میباشد

بدون کارتن

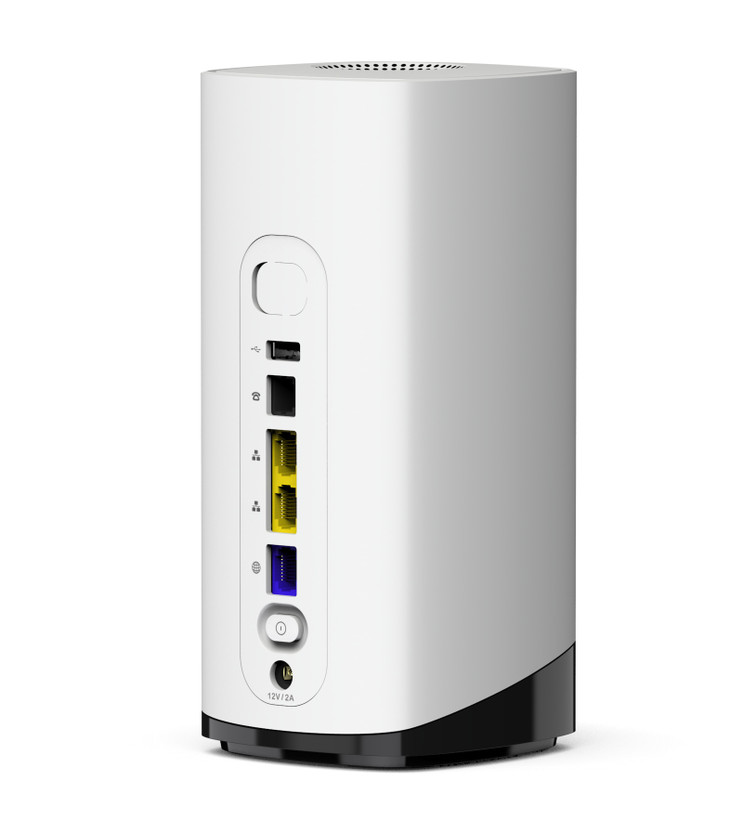

    Interface

    Power button Press and Release Power on/off

    Power Source DC 12V/2A

    Functional button Press and start enabling WPS feature

    LAN port 2 x 1GE LAN Ports (RJ45)

    1 x 1GE WAN port (RJ45)

    USB port USB 2.0 high speed for external Disk

    External Antenna 1 x TS-9 connector for Tx

    1 x Tx-9 connector for Rx

    Tel 1 x RJ11 port for Tel

    LED display – Signal strength indicator

    – 5G network status

    – Wi-Fi Status

    – LAN Port status

    – Mode to indicate Power status or FOTA status

    Card slot One 3FF (Micro) UICC/USIM card slot

    Reset button One reset button hole (Hidden beside SIM slot)

    RF functions Cellular 5G/LTE

    Chipset Qualcomm Snapdragon X55

    Standard compliant: 3GPP Release 15(both LTE and 5G)

    Band support: 5G NR SA&NSA:

    N78;

    4G LTE:

    B3、B38、B20、B41、B28;

    ENDC:

    41C_N78;

    3C_N78;

    28A_N78;

    20A_N78;

    3A_28A_N78;

    3A_41A_N78;

    28A_41A_N78;

    LTE CA:

    CA B3_B38;

    Modulation： Sub-6 UL: 256QAM, DL: 256QAM LTE DL:256QAM, UL:256QAM

    MIMO: Sub-6 DL: 4×4, UL:2×2/1X1 LTE DL:4X4, UL:1X1

    Antenna (both LTE and 5G): 7 internal antennas

    Peak data rate: Sub-6 DL: 2.3Gbps（100MHz）/4.6Gbps（200MHz）, UL:450Mbps

    Output power class: 22 +/-1 dBm (class 3)

    Wi-Fi

        QCA6391

        Standard compliant: IEEE 802.11 a/b/g/n/ac/11ax

        2.4 GHz (2×2 MIMO) +5.8G band (2×2 MIMO)

        AX1800

    Environment

    Temperature Operating: 0°C to 40°C

    Storage: -20°C to 60°C

    Humidity Operating Humidity: 5 to 95% RH

    Storage Humidity: 5 to 95% RH

    Non-condensing

    Physical specification

    Packaging Items Casing Dimension (WxDxH): 95*100*205mm

    Weight: ~830g

    Packaging Accessories DC 12V/2A Power adaptor

    Software Features

    System Features

        Web UI/Multiple language supported

        SMS/Quota/APN/PIN Management

        Network Selection

        Data Usage / Statistic

        DHCP Server

        NAT

        IP Firewall

        Proxy DNS

        Parental control – Parental controls designed to allow control of Internet access on all devices connected to your home network.

        Self-Check – Self-examination when it can’t connect to the network

        Port Settings – Port forwarding, including single port, multiple ports or a range of ports

        Security – SIM Lock and Secure boot features.

        Firewall – DMZ/MAC Filter/IP Filter/URL Filter/Port Filter

    Wi-Fi AP Features

        802.11 a/b/g/n/ax/ 2.4GHz+5.8GHz

        MU-MIMO

        Auto Channel Select (ACS)

        Hidden SSID

        Maximum number of connections：32

        Security Modes : WPA/WPA2 PSK, & WPA/WPA2/WPA3 mixed mode

        Access Control : STA blacklist/white list

        WPS : Pin and PBC, WPS2.0
